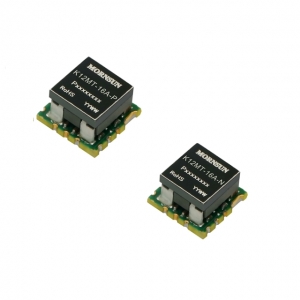

K12MT-16A
Features
K12MT-16A series is a high-efficiency POL switching regulator,it
features load capacity of 16A,the output voltage is precisely adjustable
from0.6V-3.63V,high
conversion efficiency,fast transient response,and output short circuit
protection.It is widely used in communications,
computer network
industries,and power distributed
architecture,workstations,servers,LANs/WANs,providing high current with
fast transient
response for high-speed chips of FPGA,DSP and ASIC.
| Product No. | Power(W) | Vin(VDC) | Vout(VDC) | Iout | No. of Outputs | Package | Dimension(mm) | Footprint & 3D | Markings | Datasheet | Sample | Buy |
| K12MT-16A-P | 58.08 | 12(4.5-14.4) | 0.6~3.63 | 16000mA | 1 | SMD | 12.20*12.20*8.40 | - | ||||
| K12MT-16A-N | 58.08 | 12(4.5-14.4) | 0.6~3.63 | 16000mA | 1 | SMD | 12.20*12.20*8.40 | - |
* Вышеуказанные параметры продукта только для справки. Подробные технические параметры см. в даташит.
